Background
This topic is a challenge annocuned by ISIC. The goal of this recurring challenge is to help participants develop image analysis tools to enable the automated diagnosis of melanoma from dermoscopic images.
About the ISIC archive
The International Skin Imaging Collaboration (ISIC) is an international effort to improve melanoma diagnosis, sponsored by the International Society for Digital Imaging of the Skin (ISDIS). The ISIC Archive contains the largest publicly available collection of quality controlled dermoscopic images of skin lesions.
Presently, the ISIC Archive contains over 13,000 dermoscopic images, which were collected from leading clinical centers internationally and acquired from a variety of devices within each center. Broad and international participation in image contribution is designed to insure a representative clinically relevant sample.
About Melanoma
Skin cancer is a major public health problem, with over 5,000,000 newly diagnosed cases in the United States every year. Melanoma is the deadliest form of skin cancer, responsible for an overwhelming majority of skin cancer deaths. In 2015, the global incidence of melanoma was estimated to be over 350,000 cases, with almost 60,000 deaths. Although the mortality is significant, when detected early, melanoma survival exceeds 95%.
Data
The input data are dermoscopic lesion images in JPEG format.
The training data consists of 10015 images.
AKIEC: 327
BCC: 514
BKL: 1099
DF: 115
MEL: 1113
NV: 6705
VASC: 142

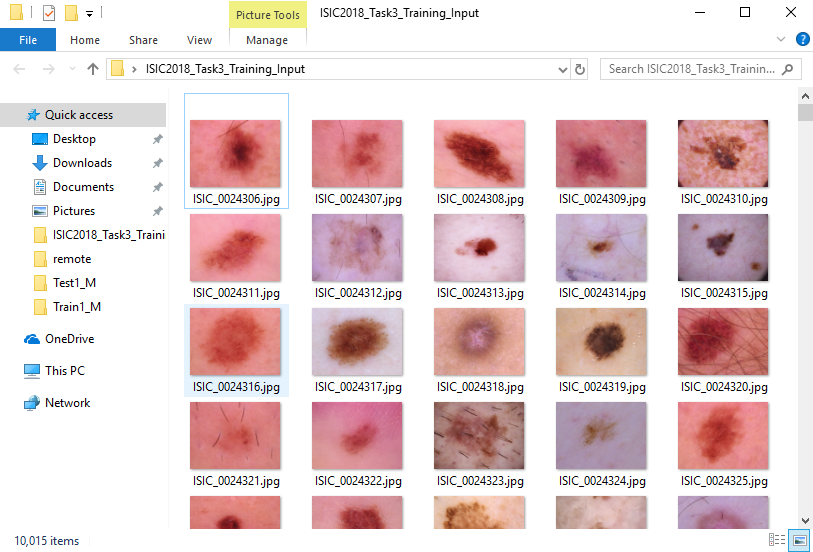

The format of raw data is as follows:

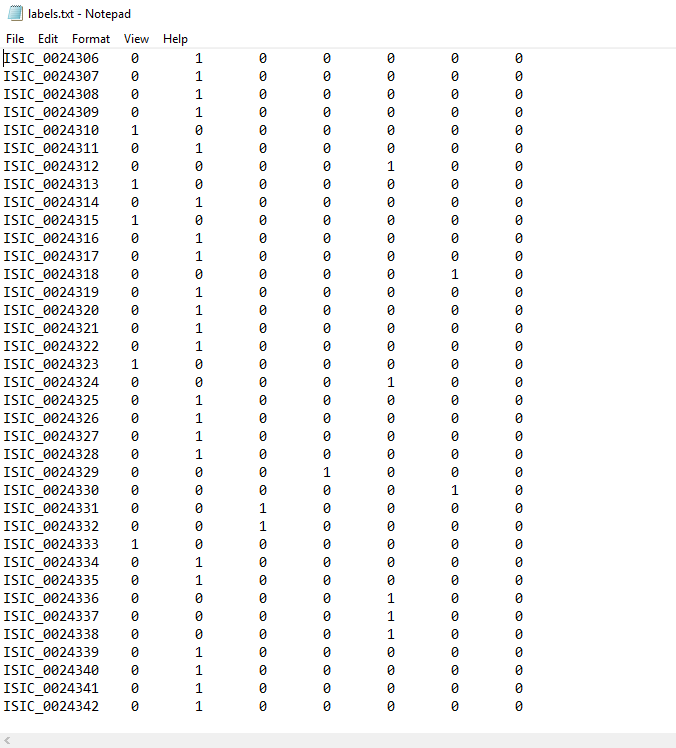

And the format of the label is as follows:
But if I directly load all of the data into memory.
def read_img(img_name):
im = Image.open(img_name).convert('RGB')
data = np.array(im)
return data
images = []
for fn in os.listdir('C:\\Users\gavin\Desktop\ISIC2018_Task3_Training_Input'):
if fn.endswith('.jpg'):
fd = os.path.join('C:\\Users\gavin\Desktop\ISIC2018_Task3_Training_Input', fn)
images.append(read_img(fd))
That is so memory consuming, even the most state-of-the art configuration won’t have enough memory space to process the data the way I used to do it. Meanwhile, the number of training data is not large enough, so I also wanna do Data Augumentation.

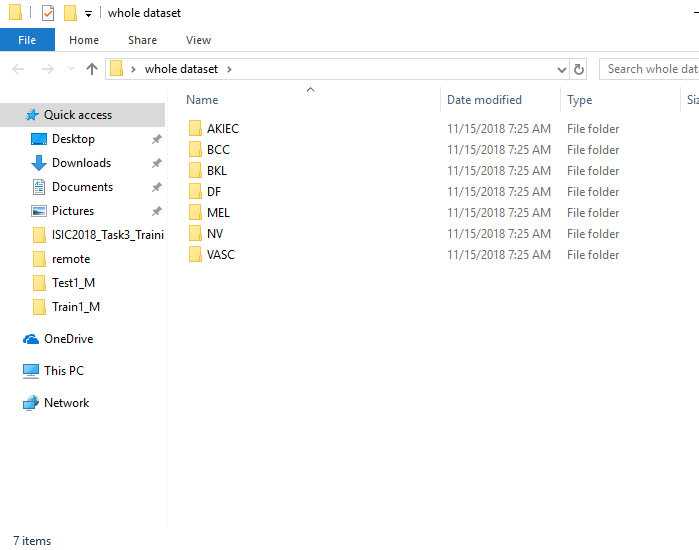

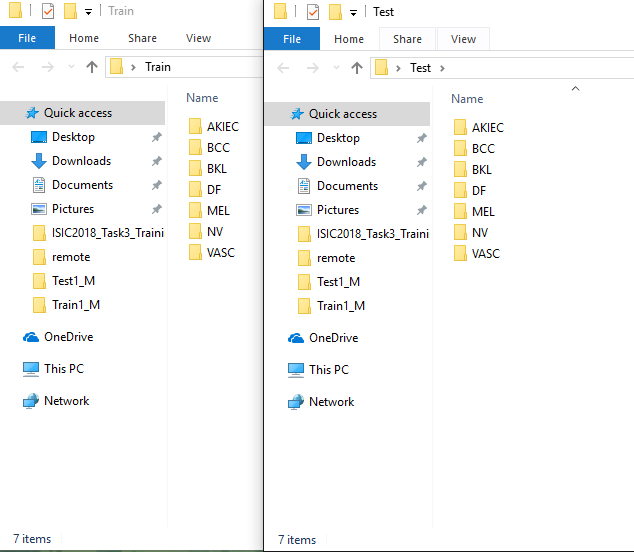

Firstly, I change the format of the raw data.
The code to do that is as follows:
f = open('C:\\Users\gavin\Desktop\labels.txt')
line = f.readline()
labels = []
while line:
if line[13] == '1':
labels.append(0)
elif line[15] == '1':
labels.append(1)
elif line[17] == '1':
labels.append(2)
elif line[19] == '1':
labels.append(3)
elif line[21] == '1':
labels.append(4)
elif line[23] == '1':
labels.append(5)
elif line[25] == '1':
labels.append(6)
line = f.readline()
path = 'C:\\Users\gavin\Desktop\ISIC2018_Task3_Training_Input'
count = 0
while count < len(labels):
curr_num = str(24306+count)
if labels[count] == 0:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\MEL')
if labels[count] == 1:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), r'C:\\Users\gavin\Desktop\Train\NV')
if labels[count] == 2:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\BCC')
if labels[count] == 3:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\AKIEC')
if labels[count] == 4:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\BKL')
if labels[count] == 5:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\DF')
if labels[count] == 6:
shutil.copy(os.path.join(path, 'ISIC_00'+curr_num+'.jpg'), 'C:\\Users\gavin\Desktop\Train\VASC')
count = count + 1
Then I do the Data Augumentation:
train_datagen = ImageDataGenerator(
rescale=1./255,
horizontal_flip=True,
fill_mode="nearest",
zoom_range=0.3,
width_shift_range=0.3,
height_shift_range=0.3,
rotation_range=30)
test_datagen = ImageDataGenerator(
rescale=1./255,
horizontal_flip=True,
fill_mode="nearest",
zoom_range=0.3,
width_shift_range=0.3,
height_shift_range=0.3,
rotation_range=30)
horizontal_flip: Randomly flip inputs horizontally.
zoom_range: Range for random zoom.
width_shift_range: fraction of total width.
height_shift_range: fraction of total height.
rotation_range: Degree range for random rotations.
Then achieve ImageGenerator:
train_generator = train_datagen.flow_from_directory(
train_data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical")
validation_generator = test_datagen.flow_from_directory(
validation_data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical")
Model
For my case, I use Transfer Learning. Transfer learning, is a research problem in machine learning that focuses on storing knowledge gained while solving one problem and applying it to a different but related problem. I use transfer learning because it’s rare to get enough dataset, so, using pre-trained network weights as initialisations or a fixed feature extractor helps in solving problems.
In transfer learning, I choose MobileNet.

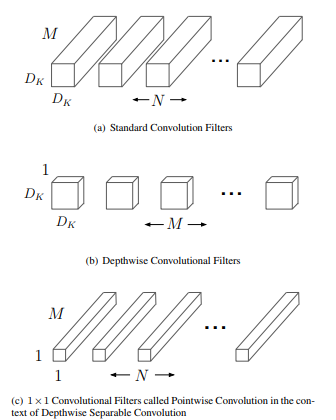

The MobileNet model is based on depthwise separable convolutions which is a from of factorized convolutions which factorize a standard convolution into a depthwise convolution and a 1x1 convolution called a pointwise convolution. For MobileNets, the depthwise convolution applies a single filter to each input channel. The pointwise convolutino then applies a 1x1 convolution to combine the outputs of the depthwise convolution. This factorization has the effect of drastically reducing computation and model size.
Structure of Model
The pre-trained model structure is:
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) (None, 224, 224, 3) 0
_________________________________________________________________
conv1_pad (ZeroPadding2D) (None, 225, 225, 3) 0
_________________________________________________________________
conv1 (Conv2D) (None, 112, 112, 32) 864
_________________________________________________________________
conv1_bn (BatchNormalization (None, 112, 112, 32) 128
_________________________________________________________________
conv1_relu (ReLU) (None, 112, 112, 32) 0
_________________________________________________________________
conv_dw_1 (DepthwiseConv2D) (None, 112, 112, 32) 288
_________________________________________________________________
conv_dw_1_bn (BatchNormaliza (None, 112, 112, 32) 128
_________________________________________________________________
conv_dw_1_relu (ReLU) (None, 112, 112, 32) 0
_________________________________________________________________
conv_pw_1 (Conv2D) (None, 112, 112, 64) 2048
_________________________________________________________________
conv_pw_1_bn (BatchNormaliza (None, 112, 112, 64) 256
_________________________________________________________________
conv_pw_1_relu (ReLU) (None, 112, 112, 64) 0
_________________________________________________________________
conv_pad_2 (ZeroPadding2D) (None, 113, 113, 64) 0
_________________________________________________________________
conv_dw_2 (DepthwiseConv2D) (None, 56, 56, 64) 576
_________________________________________________________________
conv_dw_2_bn (BatchNormaliza (None, 56, 56, 64) 256
_________________________________________________________________
conv_dw_2_relu (ReLU) (None, 56, 56, 64) 0
_________________________________________________________________
conv_pw_2 (Conv2D) (None, 56, 56, 128) 8192
_________________________________________________________________
conv_pw_2_bn (BatchNormaliza (None, 56, 56, 128) 512
_________________________________________________________________
conv_pw_2_relu (ReLU) (None, 56, 56, 128) 0
_________________________________________________________________
conv_dw_3 (DepthwiseConv2D) (None, 56, 56, 128) 1152
_________________________________________________________________
conv_dw_3_bn (BatchNormaliza (None, 56, 56, 128) 512
_________________________________________________________________
conv_dw_3_relu (ReLU) (None, 56, 56, 128) 0
_________________________________________________________________
conv_pw_3 (Conv2D) (None, 56, 56, 128) 16384
_________________________________________________________________
conv_pw_3_bn (BatchNormaliza (None, 56, 56, 128) 512
_________________________________________________________________
conv_pw_3_relu (ReLU) (None, 56, 56, 128) 0
_________________________________________________________________
conv_pad_4 (ZeroPadding2D) (None, 57, 57, 128) 0
_________________________________________________________________
conv_dw_4 (DepthwiseConv2D) (None, 28, 28, 128) 1152
_________________________________________________________________
conv_dw_4_bn (BatchNormaliza (None, 28, 28, 128) 512
_________________________________________________________________
conv_dw_4_relu (ReLU) (None, 28, 28, 128) 0
_________________________________________________________________
conv_pw_4 (Conv2D) (None, 28, 28, 256) 32768
_________________________________________________________________
conv_pw_4_bn (BatchNormaliza (None, 28, 28, 256) 1024
_________________________________________________________________
conv_pw_4_relu (ReLU) (None, 28, 28, 256) 0
_________________________________________________________________
conv_dw_5 (DepthwiseConv2D) (None, 28, 28, 256) 2304
_________________________________________________________________
conv_dw_5_bn (BatchNormaliza (None, 28, 28, 256) 1024
_________________________________________________________________
conv_dw_5_relu (ReLU) (None, 28, 28, 256) 0
_________________________________________________________________
conv_pw_5 (Conv2D) (None, 28, 28, 256) 65536
_________________________________________________________________
conv_pw_5_bn (BatchNormaliza (None, 28, 28, 256) 1024
_________________________________________________________________
conv_pw_5_relu (ReLU) (None, 28, 28, 256) 0
_________________________________________________________________
conv_pad_6 (ZeroPadding2D) (None, 29, 29, 256) 0
_________________________________________________________________
conv_dw_6 (DepthwiseConv2D) (None, 14, 14, 256) 2304
_________________________________________________________________
conv_dw_6_bn (BatchNormaliza (None, 14, 14, 256) 1024
_________________________________________________________________
conv_dw_6_relu (ReLU) (None, 14, 14, 256) 0
_________________________________________________________________
conv_pw_6 (Conv2D) (None, 14, 14, 512) 131072
_________________________________________________________________
conv_pw_6_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_6_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_dw_7 (DepthwiseConv2D) (None, 14, 14, 512) 4608
_________________________________________________________________
conv_dw_7_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_dw_7_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pw_7 (Conv2D) (None, 14, 14, 512) 262144
_________________________________________________________________
conv_pw_7_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_7_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_dw_8 (DepthwiseConv2D) (None, 14, 14, 512) 4608
_________________________________________________________________
conv_dw_8_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_dw_8_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pw_8 (Conv2D) (None, 14, 14, 512) 262144
_________________________________________________________________
conv_pw_8_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_8_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_dw_9 (DepthwiseConv2D) (None, 14, 14, 512) 4608
_________________________________________________________________
conv_dw_9_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_dw_9_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pw_9 (Conv2D) (None, 14, 14, 512) 262144
_________________________________________________________________
conv_pw_9_bn (BatchNormaliza (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_9_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_dw_10 (DepthwiseConv2D) (None, 14, 14, 512) 4608
_________________________________________________________________
conv_dw_10_bn (BatchNormaliz (None, 14, 14, 512) 2048
_________________________________________________________________
conv_dw_10_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pw_10 (Conv2D) (None, 14, 14, 512) 262144
_________________________________________________________________
conv_pw_10_bn (BatchNormaliz (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_10_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_dw_11 (DepthwiseConv2D) (None, 14, 14, 512) 4608
_________________________________________________________________
conv_dw_11_bn (BatchNormaliz (None, 14, 14, 512) 2048
_________________________________________________________________
conv_dw_11_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pw_11 (Conv2D) (None, 14, 14, 512) 262144
_________________________________________________________________
conv_pw_11_bn (BatchNormaliz (None, 14, 14, 512) 2048
_________________________________________________________________
conv_pw_11_relu (ReLU) (None, 14, 14, 512) 0
_________________________________________________________________
conv_pad_12 (ZeroPadding2D) (None, 15, 15, 512) 0
_________________________________________________________________
conv_dw_12 (DepthwiseConv2D) (None, 7, 7, 512) 4608
_________________________________________________________________
conv_dw_12_bn (BatchNormaliz (None, 7, 7, 512) 2048
_________________________________________________________________
conv_dw_12_relu (ReLU) (None, 7, 7, 512) 0
_________________________________________________________________
conv_pw_12 (Conv2D) (None, 7, 7, 1024) 524288
_________________________________________________________________
conv_pw_12_bn (BatchNormaliz (None, 7, 7, 1024) 4096
_________________________________________________________________
conv_pw_12_relu (ReLU) (None, 7, 7, 1024) 0
_________________________________________________________________
conv_dw_13 (DepthwiseConv2D) (None, 7, 7, 1024) 9216
_________________________________________________________________
conv_dw_13_bn (BatchNormaliz (None, 7, 7, 1024) 4096
_________________________________________________________________
conv_dw_13_relu (ReLU) (None, 7, 7, 1024) 0
_________________________________________________________________
conv_pw_13 (Conv2D) (None, 7, 7, 1024) 1048576
_________________________________________________________________
conv_pw_13_bn (BatchNormaliz (None, 7, 7, 1024) 4096
_________________________________________________________________
conv_pw_13_relu (ReLU) (None, 7, 7, 1024) 0
=================================================================
Total params: 3,228,864
Trainable params: 3,206,976
Non-trainable params: 21,888
The code of it is:
from keras import applications
from keras.preprocessing.image import ImageDataGenerator
from keras import optimizers
from keras.models import Sequential, Model
from keras.layers import Dropout, Flatten, Dense, BatchNormalization, Activation
img_width, img_height = 224, 224
train_data_dir = "C:\\Users\gavin\Desktop\Train1_M"
validation_data_dir = "C:\\Users\gavin\Desktop\Test1_M"
data_dir = 'C:\\Users\gavin\Desktop\whole_M'
nb_train_samples = 7000
nb_validation_samples = 3000
batch_size = 32
epochs = 100
model = applications.MobileNet(weights="imagenet", include_top=False, input_shape=(img_width, img_height, 3))
x = model.output
x = Flatten()(x)
x = Dense(1024, activation="relu")(x)
x = Dropout(0.5)(x)
x = Dense(1024, activation="relu")(x)
x = Dropout(0.5)(x)
predictions = Dense(7, activation="softmax")(x)
# creating the final model
model_final = Model(input=model.input, output=predictions)
I use imagenet weights as initial weights, include_top=False means remove the fully-connected layer at the top of the network. Because in my case, the total classes is 7.
model_final.compile(loss="categorical_crossentropy", optimizer=optimizers.SGD(lr=0.001, momentum=0.9), metrics=["accuracy"])
model_final.fit_generator(
train_generator,
steps_per_epoch=6900//batch_size,
epochs=epochs,
validation_data=validation_generator,
validation_steps=3000//batch_size)
Because I use ImageDataGenerator before, so here I have to use fit_generator to train the model.

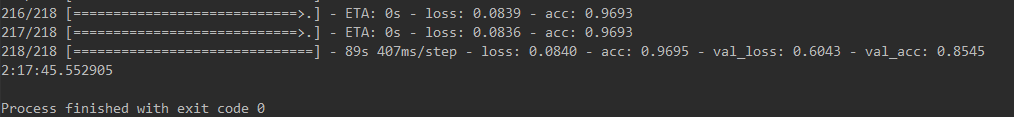

The result of the model is as follows:
batch_size=32, epoch=100, lr=0.001
According to the result, we may suffer overfitting.
Overfitting
Firstly I changed batch_size, learning rate and epoch, but it did not work.
Change validation dataset
Because I split training and validation dataset manually, I just choose the last 30% data as validation data.
Then I tried to choose the first 30% data as validation data.
Except above, I thought maybe I should not split them manually, then I changed the ImageDataGenerator so the system can split it auto.
train_datagen = ImageDataGenerator(
rescale=1./255,
horizontal_flip=True,
fill_mode="nearest",
zoom_range=0.3,
width_shift_range=0.3,
height_shift_range=0.3,
rotation_range=30,
validation_split=0.3)
train_generator = train_datagen.flow_from_directory(
train_data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical"
subset='training')
validation_generator = train_datagen.flow_from_directory(
validation_data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical",
subset='validation')
validation_split=0.3 means split data to 70% for training and 30% for validation.
subset='training, subset='validation to determine which dataset it use.
BatchNormalization
I added ‘BatchNormalization’ after Dense and before Activation.
model = applications.MobileNet(weights="imagenet", include_top=False, input_shape=(img_width, img_height, 3))
x = model.output
x = Flatten()(x)
x = Dense(1024)(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
x = Dense(1024)(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
predictions = Dense(7, activation="softmax")(x)
L1, L2 Regularization
I also tried l1, l2 Regularization in Dense
from keras import regularizers
model = applications.MobileNet(weights="imagenet", include_top=False, input_shape=(img_width, img_height, 3))
x = model.output
x = Flatten()(x)
x = Dense(1024, kernel_regularizer=regularizers.l2(0.01), activity_regularizer=regularizers.l2(0.01))(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
x = Dense(1024, kernel_regularizer=regularizers.l2(0.01), activity_regularizer=regularizers.l2(0.01))(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
predictions = Dense(7, activation="softmax")(x)

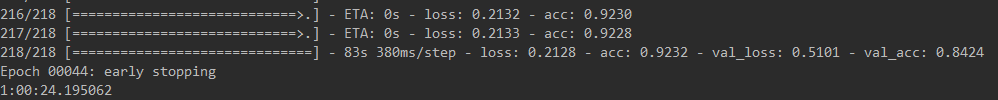

Early Stop
from keras.callbacks import EarlyStopping
early_stop = EarlyStopping(monitor='val_loss', patience=10, verbose=1)
model_final.fit_generator(
train_generator,
steps_per_epoch=7000//batch_size,
epochs=epochs,
validation_data=validation_generator,
validation_steps=3000//batch_size,
callbacks=[early_stop])
patience: number of epochs with no improvement after which training will be stopped.
Change optimizer
model_final.compile(loss="categorical_crossentropy", optimizer=optimizers.adadelta(lr=1.0, rho=0.95, epsilon=None, decay=0.0), metrics=['accuracy'])
batch_size=64, epoch=50
Others
I tried to freeze some layers and only trained a few layers before.
for layer in model.layers[:5]:
layer.trainable = False
The overfitting problem is more serious, I think that’s because my dataset is small but very different from the original dataset. I cannot freeze all the layers and train only the classifier.
Complete Code
from keras import applications
from keras.preprocessing.image import ImageDataGenerator
from keras import optimizers
from keras.models import Sequential, Model
from keras.layers import Dropout, Flatten, Dense, BatchNormalization, Activation
from keras import regularizers
from keras import backend as k
from keras.callbacks import ModelCheckpoint, LearningRateScheduler, TensorBoard, EarlyStopping
import datetime
start = datetime.datetime.now()
img_width, img_height = 224, 224
train_data_dir = "C:\\Users\gavin\Desktop\Train1_M"
validation_data_dir = "C:\\Users\gavin\Desktop\Test1_M"
data_dir = 'C:\\Users\gavin\Desktop\whole_M'
nb_train_samples = 7000
nb_validation_samples = 3000
batch_size = 64
epochs = 50
class_weight = {0: 20.,
1: 13.,
2: 6.,
3: 58.,
4: 6.,
5: 1.,
6: 47.}
model = applications.MobileNet(weights="imagenet", include_top=False, input_shape=(img_width, img_height, 3))
#for layer in model.layers[:5]:
# layer.trainable = False
x = model.output
x = Flatten()(x)
x = Dense(1024)(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
x = Dense(1024)(x)
x = BatchNormalization()(x)
x = Activation('relu')(x)
x = Dropout(0.5)(x)
predictions = Dense(7, activation="softmax")(x)
model.summary()
# creating the final model
model_final = Model(input=model.input, output=predictions)
# compile the model
# model_final.compile(loss="categorical_crossentropy", optimizer=optimizers.SGD(lr=0.001, momentum=0.9), metrics=["accuracy"])
model_final.compile(loss="categorical_crossentropy", optimizer=optimizers.adadelta(lr=1.0, rho=0.95, epsilon=None, decay=0.0), metrics=['accuracy'])
# Initiate the train and test generators with data Augumentation
train_datagen = ImageDataGenerator(
rescale=1./255,
horizontal_flip=True,
fill_mode="nearest",
zoom_range=0.3,
width_shift_range=0.3,
height_shift_range=0.3,
rotation_range=30,
validation_split=0.3)
'''
test_datagen = ImageDataGenerator(
rescale=1./255,
horizontal_flip=True,
fill_mode="nearest",
zoom_range=0.3,
width_shift_range=0.3,
height_shift_range=0.3,
rotation_range=30)
'''
train_generator = train_datagen.flow_from_directory(
data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical",
subset='training')
validation_generator = train_datagen.flow_from_directory(
data_dir,
target_size=(img_width, img_height),
batch_size=batch_size,
class_mode="categorical",
subset='validation')
# early_stop = EarlyStopping(monitor='val_loss', patience=10, verbose=1)
# Train the model
model_final.fit_generator(
train_generator,
steps_per_epoch=7000//batch_size,
epochs=epochs,
validation_data=validation_generator,
validation_steps=3000//batch_size)
# callbacks=[early_stop]
# class_weight=class_weight
end = datetime.datetime.now()
print(end-start)
